Our Product Catalog

A complete range of scaffolding, shuttering and accessory products — manufactured in-house and available for purchase or rental.

Category 01

Scaffolding Products

The principal load-bearing and access components of our scaffolding systems.

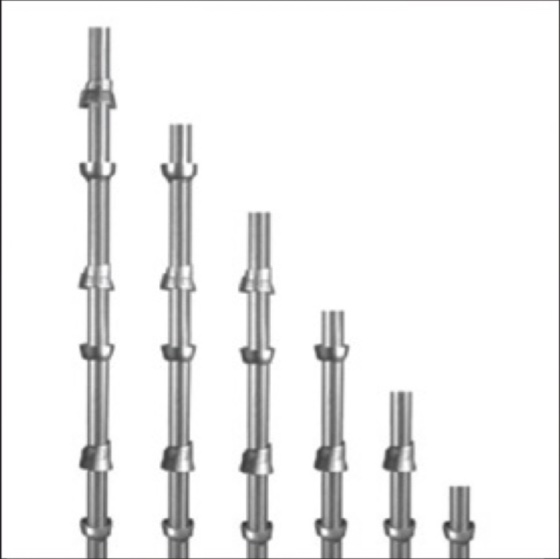

Cuplock Verticals
Scaffolding

Cuplock Verticals / Standards

Principal load-bearing members with top & bottom cups. Bottom cups welded at 500/1000mm distance; top cups movable and fixed via spigot. 40 NB medium/heavy class pipes.

Size (MTR)Size (MM)Weight (KG)
3 MTR3000 MM13.3*
2.5 MTR2500 MM10.8*
2 MTR2000 MM8.6*
1.5 MTR1500 MM6.5*
1 MTR1000 MM4.5*
0.5 MTR500 MM2.4*

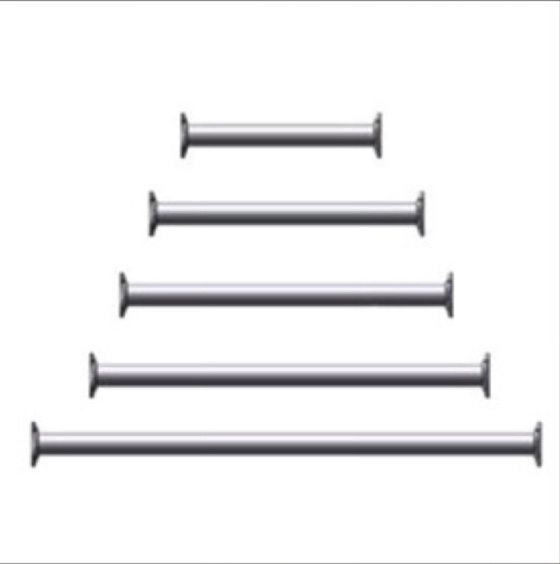

Cuplock Ledgers
Scaffolding

Cuplock Ledgers / Horizontals

40 NB light/medium pipe with forged blades soldered at ends. Length measured center-to-center of two verticals. Available in standard or customized sizes.

Size (MTR)Length (MM)Weight (KG)
2 MTR2000 MM6.8*
1.95 MTR1950 MM6.7*
1.45 MTR1450 MM5.5*
1.2 MTR1200 MM4.2*
1.15 MTR1150 MM4.0*
0.95 MTR950 MM3.3*
0.55 MTR550 MM2.4*

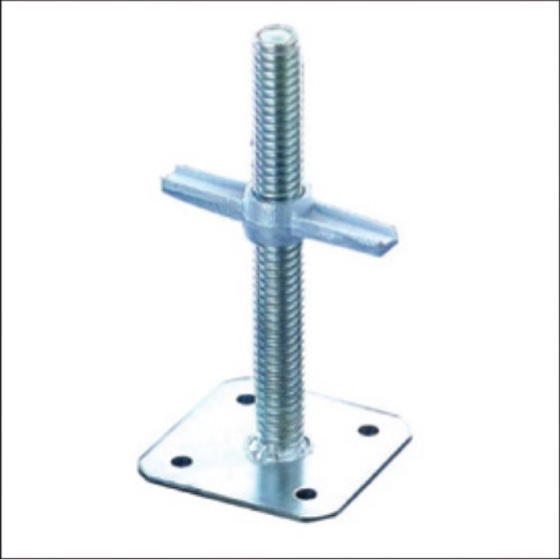

Base Jack
Scaffolding

Base Jack

Available in various pipe & rod options, including 34×650 MM and custom sizes. Loading capacities of 5–6 tons. Heavy-duty steel construction with easy assembly and dismantling.

Size (Inch)Length (MM)Weight (KG)
143553.0*
184503.5*
246004.3*

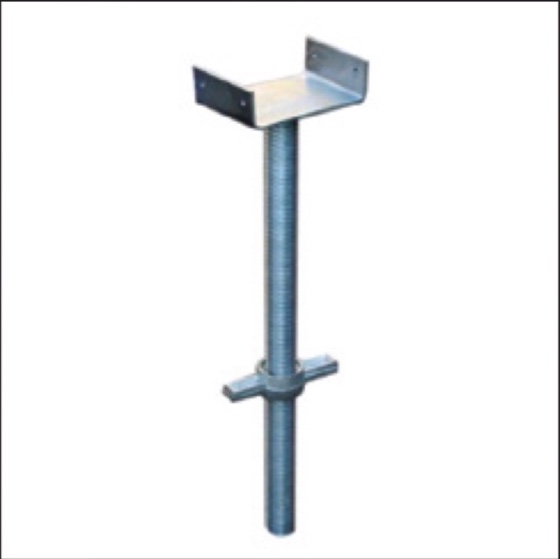

U-Head Jack
Scaffolding

U-Head Jack

Used with adjustable scaffolding systems to hold timber beams in place. Adjustable, of superior-quality steel.

Size (Inch)Size (MM)Weight (KG)
143503.0*
184503.5*
246004.3*

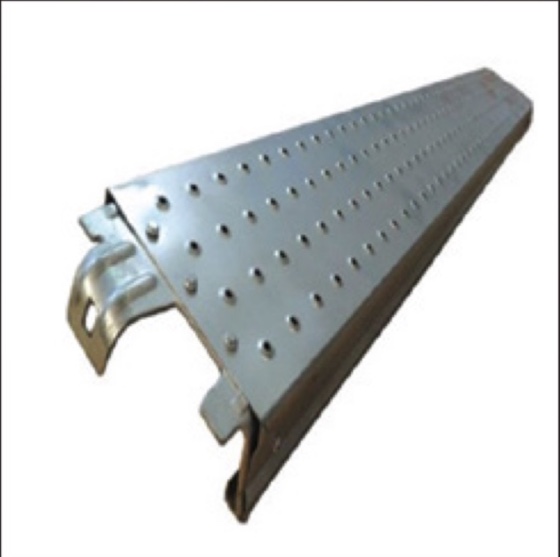

Walkway Plank
Scaffolding

Walkway Plank

Best-in-class walkway planks designed for industrial requirements. QC-checked against international quality standards.

Length (MM)Weight (KG)
10007.5
12008.5
150011
180014

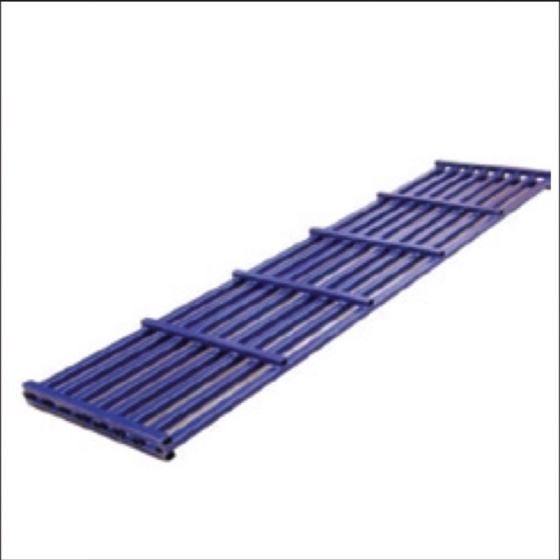

Challis
Scaffolding

Challis (MS)

Premium-quality MS Challis precisely manufactured with sophisticated machinery and premium raw material. Highly acknowledged for reliable performance — available for rent or purchase.

Length (MTR)Weight (KG)
2 MTR16.5
2.2 MTR17.5
2.5 MTR18.5

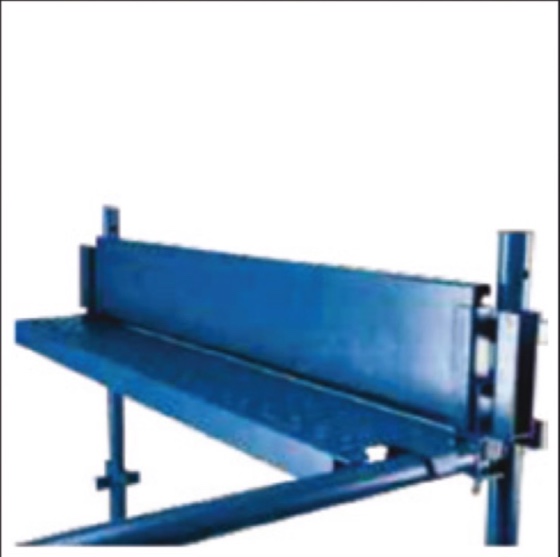

Toe Board
Scaffolding • Safety

Toe Board

One of the most essential parts of protection gear — works in scorching heat, cold and rain. Always available in our warehouse.

Length (MM)Weight (KG)
120010
150012
Category 02

Shuttering Products

Formwork systems and components for casting walls, floors and structural members.

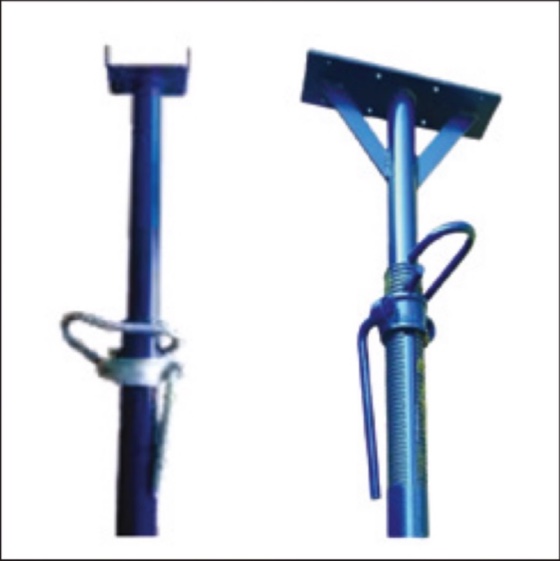

Tele Props
Shuttering

Tele / Acrow Props

Used to temporarily support the structure of a building. Made of solid iron, adjustable to height. 40 NB (48.3 mm) inner and 50 NB (60 mm) outer pipe.

Size (Meter)Weight (KG)
2 × 218.3
2 × 321.3
3 × 325.0

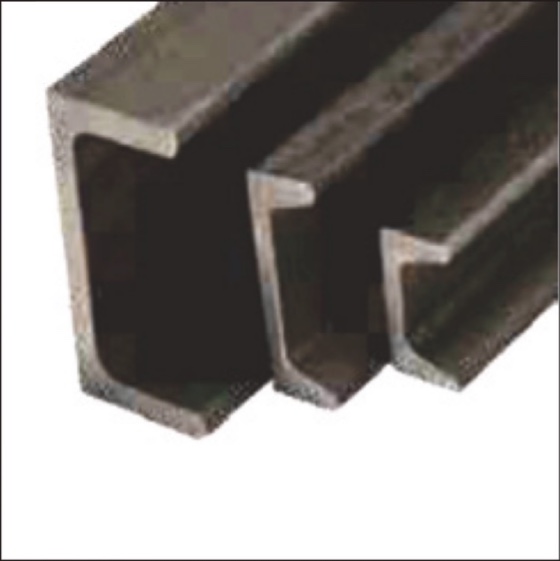

Channels
Shuttering

ISMC Channels

Indian Standard Medium Channels (ISMC) — sturdy and heavy, designed to endure adverse weather and heavy loads on construction sites.

Height (Feet)Weight (KG)
818.4
920.7
1023
2046

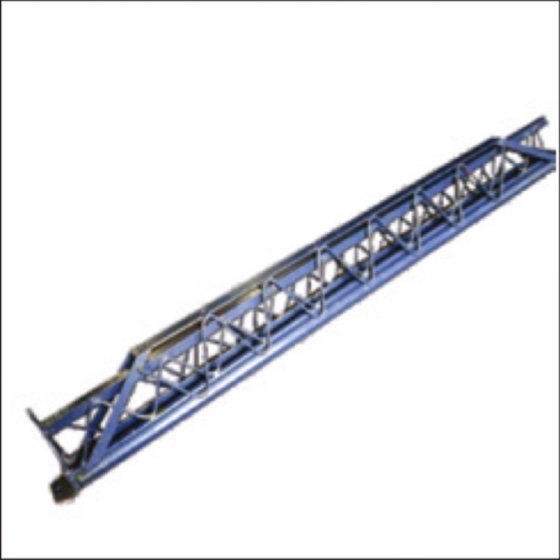

Acrow Span
Shuttering

Acrow Span

Can be used in lieu of channels. Adjustable in size — very useful in uneven areas. High load-bearing capacity for long life.

Size (Feet)Weight (KG)
2.5 × 2.540

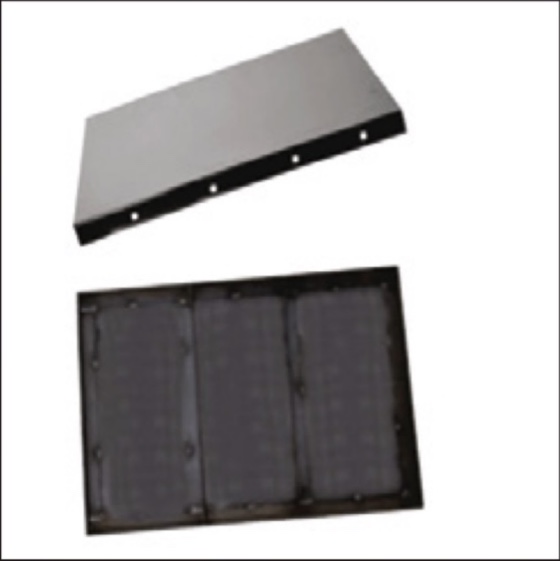

Shuttering Plate
Shuttering

Shuttering Plates / Wall Form Panels

Used to form side walls, foundations, footings and similar structures. Robust construction, minimal maintenance, corrosion resistant.

Size (MM)FeetWeight (KG)
600 × 9002 × 323
450 × 90018 × 318
300 × 90012 × 315
375 × 90015 × 321.5

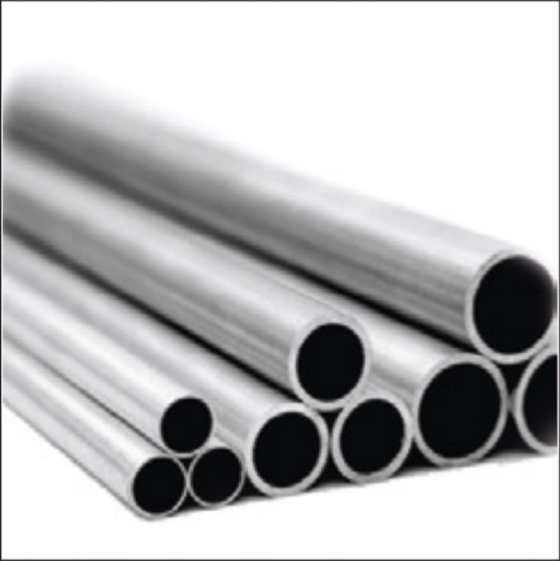

MS Pipe
Shuttering

MS Scaffolding Pipe

Base structure for scaffolding and formwork strengthening. 40 NB pipes (48 mm OD) with 3.2 mm wall thickness — sturdy, lightweight, high load capacity.

Category 03

Accessories & Scaffolding Tools

Scaffolding  |  Form Work (Shuttering)  |  Scaffolding Industry — the complete range of small parts and tools that make a scaffolding system safe, reliable and quick to erect.

Accessory

U Head Jack

Accessory

Base Jack

Accessory

Jack Rod with Nut

Accessory

C Clamp

Accessory

Jack Nut

Accessory

Cup Nut

Accessory

Spigot Pin

Accessory

Joint Pin

Accessory

MS Gogo Nut

Accessory

Casting Gogo Nut

Accessory

Gogo Machine

Accessory

I Bolt

Accessory

Wailing Clamp

Accessory

Beam Coupler

Accessory

Ladder Clamp

Accessory

Wedge Plate

Accessory

Wing Plate

Accessory

Rapid Clamp

Accessory

Prop G Pin

Accessory

Stub Pin

Accessory

Forged Top Cup

Accessory

Casting Top Cup

Accessory

Bottom Cup

Accessory

Ledger Blade

Accessory

Prop Lnt Nut

Accessory

Prop Sleeve with Nut

Accessory

Base Plate

Accessory

U Plate

Accessory

Tie Rod

Accessory

Anchor Nut — 2 Wings

Accessory

Anchor Nut — 3 Wings

Accessory

Water Stopper

Coupler

Swivel Sheet Coupler

Coupler

Fixed Sheet Coupler

Coupler

Swivel Forged Coupler

Coupler

Fixed Forged Coupler

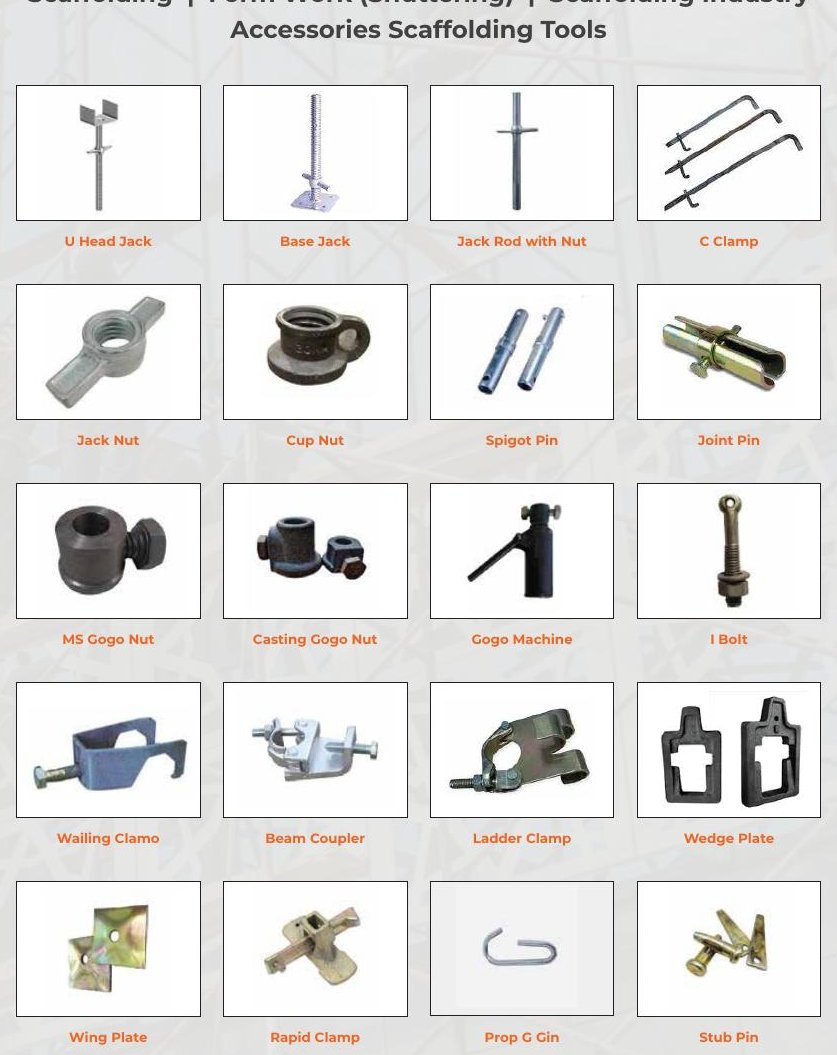

Accessories — Set 1

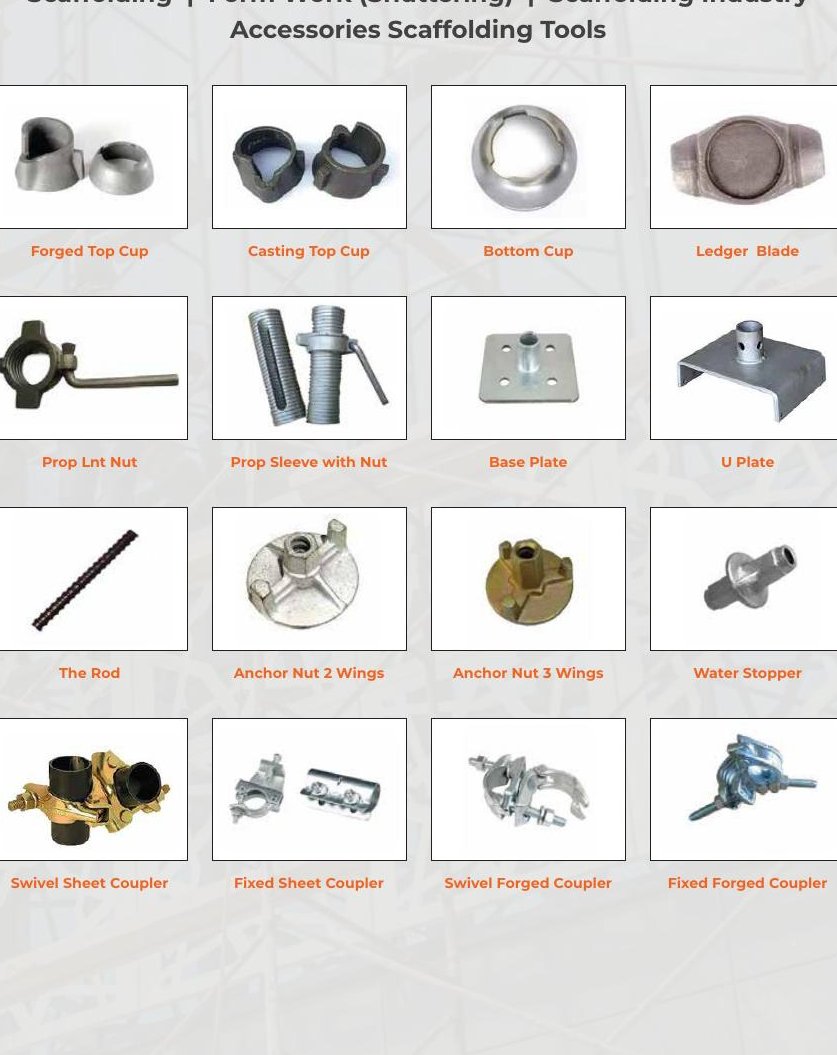

Accessories — Set 2

* All weights and specifications are indicative. Final dimensions can be customised to project requirements.
